GI Earthing Electrode

" Sci PIPE-IN-PIPE" TECHNOLOGY ( Out Pipe, Inner pipe are made by GI ) This Technology concept involves B class pipe and 2 to 3mm thickness of GI pipe are subject to hot dip galvanization : 80-100 micron on the outer empty space inside pipe will filled with a specially developed crystalline, hygroscopic gel.

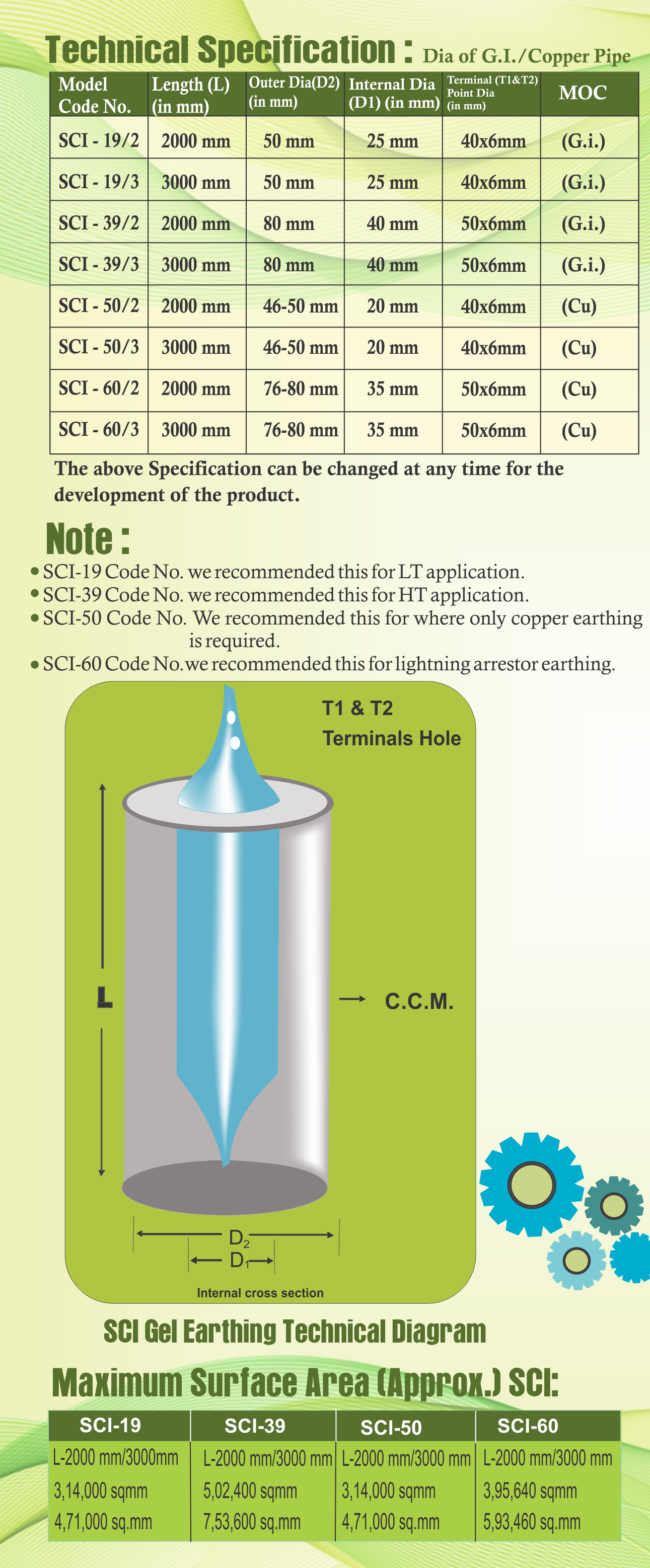

MODEL	LEANGHT (L) (MM)	OUTER DIA. (IN MM)	INTERNAL DIA (IN MM) (PIPE)	TERMINAL (DIA IN MM)
SCI – 19/2	2000 MM	50MM	25MM	40X6 MM
SCI- 19/3	3000MM	50MM	25MM	40X6MM
SCI- 39/2	2000 MM	80 MM	40 MM	50X6 MM
SCI- 39/3	3000 MM	80MM	40MM	50X6MM

SCI PIPE IN STRIP" TECHNOLOGY

(Outer Pipe and Inner strip are made by G.I electrode will filled with a specially developed crystalline, hygroscopic gel.)

MODEL	LEANGHT (L) (MM)	OUTER DIA. (IN MM)	INNER STRIP (IN MM)	TERMINAL (IN MM)
SCI – 19/2	2000 MM	50 MM	25x3 MM	40X6 MM
SCI- 19/3	3000MM	50 MM	25x3 MM	40X6 MM
SCI- 39/2	2000 MM	80 MM	32x6 MM	50X6 MM
SCI- 39/3	3000 MM	80 MM	32x6 MM	50X6 MM

SCI PIPE IN STRIP" TECHNOLOGY

(Outer pipe made by G.I and electrode will filled with a specially developed crystalline, hygroscopic gel.)

MODEL	LEANGHT (L) (MM)	OUTER DIA. (IN MM)	TERMINAL
SCI – 19/2	2000 MM	50 MM	40X6
SCI- 19/3	3000MM	50 MM	40X6
SCI- 39/2	2000 MM	80 MM	50X6
SCI- 39/3	3000 MM	80 MM	50X6
